Basic Shop Terminology

note: click on terms to toggle picture

hand tools

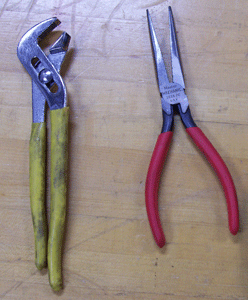

pliers

pliers
Pliers-expanding & needle nose

screwdriver

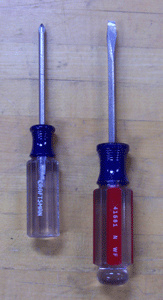

philips head and flat head screw driver
phillips head screw driver
flat head screw driver

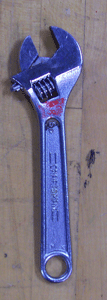

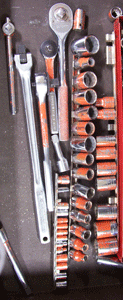

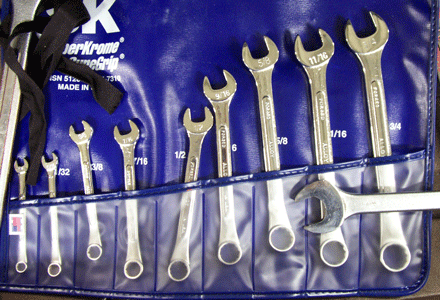

wrench

crescent wrenchbox wrenchessocket wrench set
crescent wrench, box wrench set, socket set

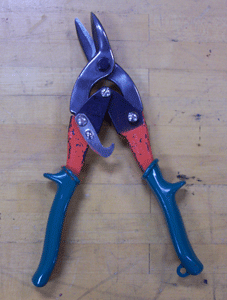

snips

snips
snips

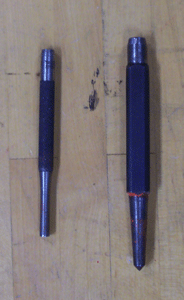

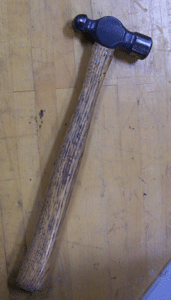

punch and hammer

punchball peen hammer
drive punch, marking punch, ball-peen hammer

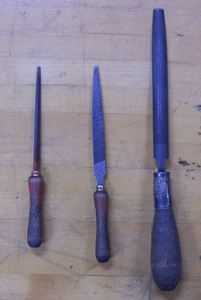

file

hand filescard file

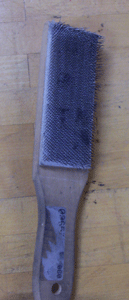

various hand files and card file used for cleaning the files
hole making

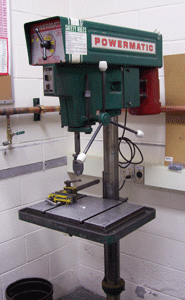

drill press

drill press
Drill press

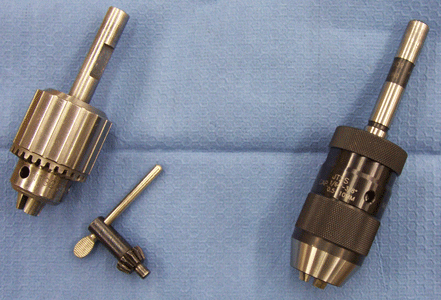

drill chuck

drill chuck
drill chuck with key and keyless drill chuck
used to hold drill tools NOT end mills

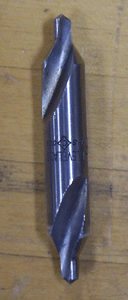

center drill

center drill
Center Drill
used to start a hole when drilling
drill bit types

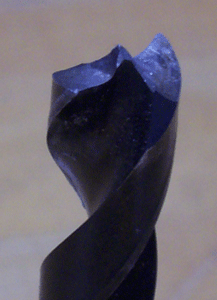

sheet metal bit

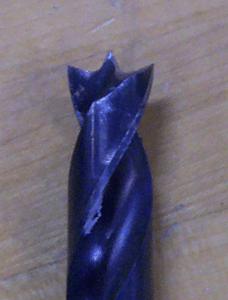

sheet metal drill bitside view of sheet metal drill bit
Sheet Metal cutting Drill Bit
Notice the tip of the drill

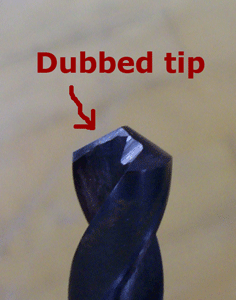

brass/copper drill bit

dubbed drill bit
Dubbed Drill Bit
Used for drilling Brass and Copper

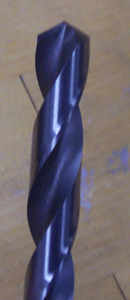

metal drill bit

metal cutting drill bit
Metal cutting Drill Bit
usually 118 degree tip

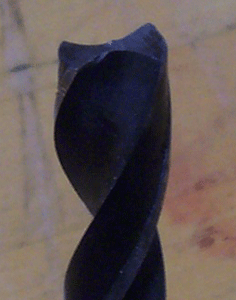

flat bottom

flat bottom drill bit
Flat Bottom drill bit
used to make a flat bottom in a pre-drilled hole
Finishing the hole

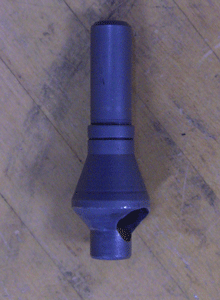

deburring tool

hole deburring tool
Hole Deburrer
used for deburring the edge of a pre-drilled hole

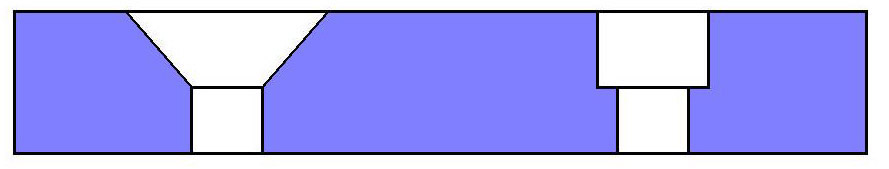

counter-sink vs counter-bore

counter sinkcounter bore
Counter-sink is used to recess a pre-drilled hole for a flat-head screw
Counter-bore is used to recess a pre-drilled hole for socket-head cap screw

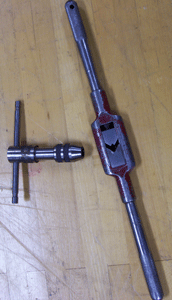

tap

taptap wrench handles
tap (used to thread a hole) and tap handles

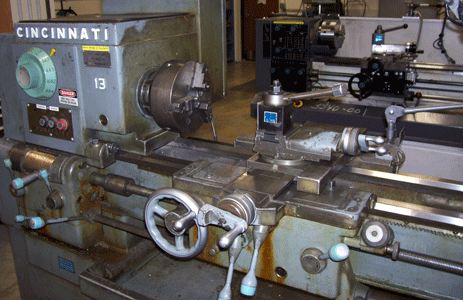

lathe

lathe

lathe
Lathe with 3 jaw chuck
measuring devices

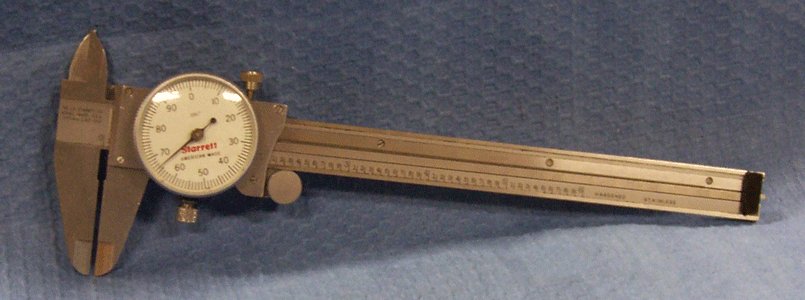

caliper

dial caliper
Dial Caliper

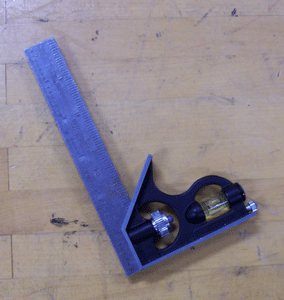

combination square

combination square
Combination Square

height gage

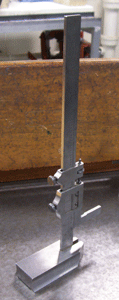

height gage
Height Gage

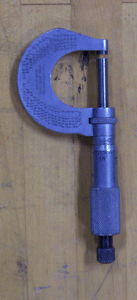

micrometer

micometer
Micrometer
how to read a metric micrometer, english here

protactor

protractor
Protractor
used for measuring angles

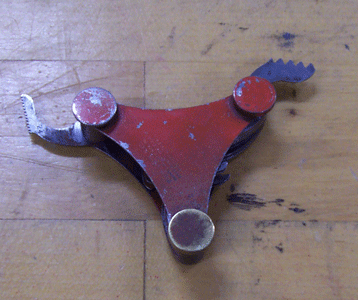

screw pitch gage

screw pitch thread gage
Screw Pitch Gage
Used to determine the pitch of a thread

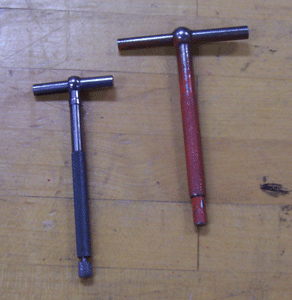

telescoping hole gage

telescoping hole gages
Telescoping Hole Gages
used for measuring the diameter of a hole
mill

mill-vertical

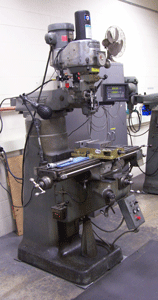

vertical mill
Vertical Mill

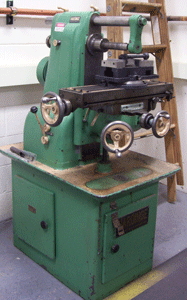

mill-horizontal

horizontal mill
Horizontal Mill
mill accessories

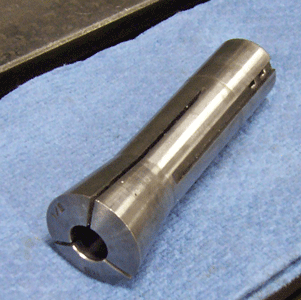

r-8 collet

R eight collet
R-8 collet
used for holding tools in the Vertical Mill

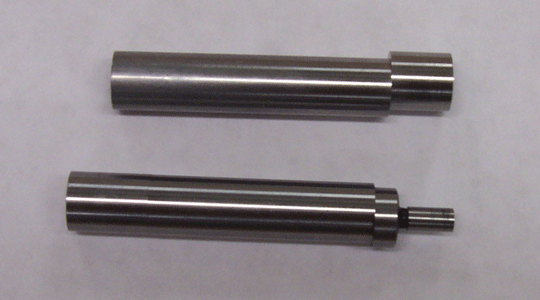

edge finder

edge finder
top- .5" diameter edge finder
bottom- .2" diameter edge finder

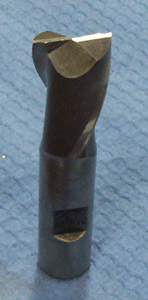

end mill

two flute end mill
2-flute end mill

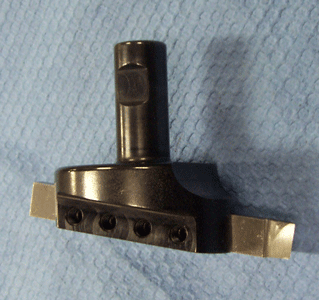

fly cutter

fly cutter
Fly Cutter
used for milling a flat surface

boring head

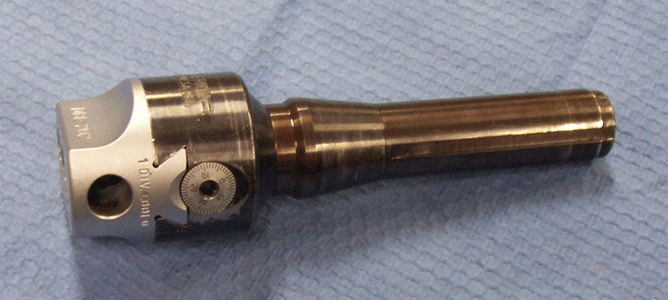

boring head
Boring Head
Used for enlarging a hole

dividing head

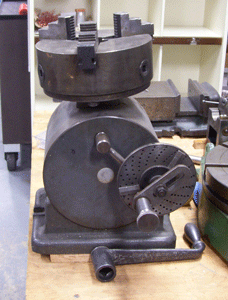

dividing head
Dividing head

parallels

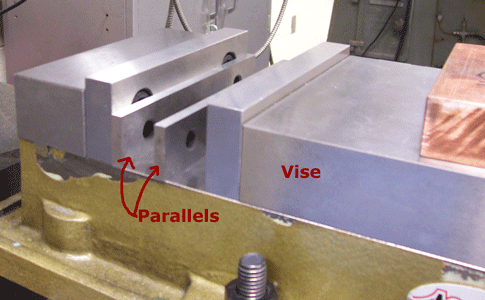

parallels in use in a vise

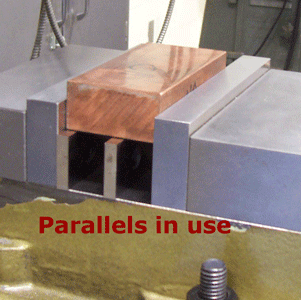

Parallels used to raise a part in a mill vise

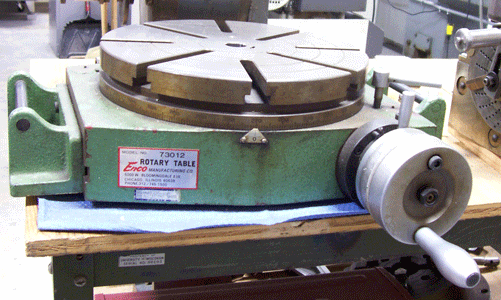

rotary table

rotary table
Rotary Table

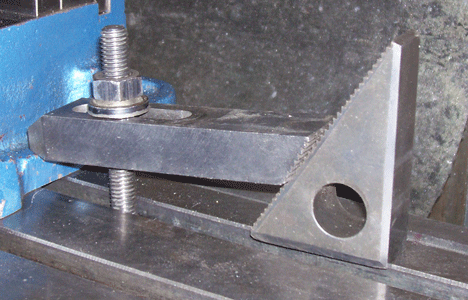

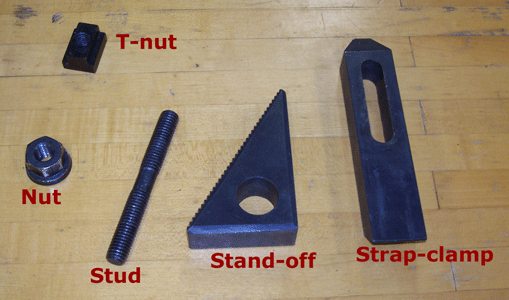

clamping to table using strap-clamp assembly


Notice the set up. The stud is closest to the clamped part,
the strap clamp is higher on the stand-off end
